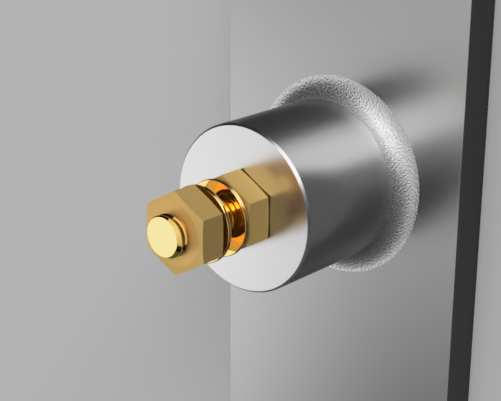

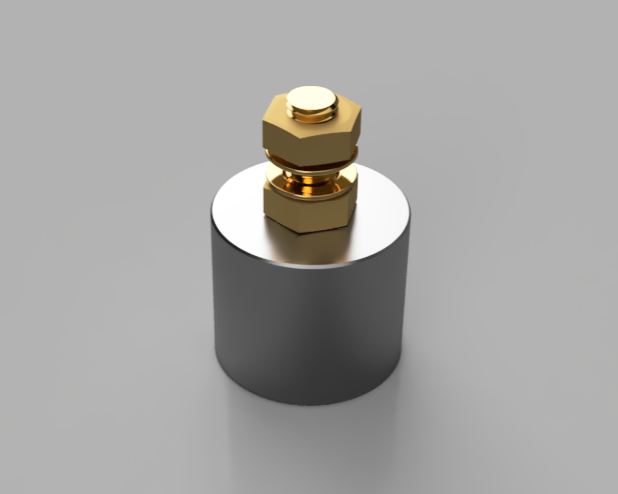

Earth Boss Type 1 Stainless welded on with fixings hardware brass or bronze

Earth Boss (Type 1) With Phosphor Bronze (PB) Hardware

Name: Earth Boss (Type 1) With Phosphor Bronze (PB) Hardware
Brand: A C Engineering
SKU: ACTYPE01-BH
Price: 13.40 GBP
Availability: InStock

£13.40

Type 1 Earth Boss specification :
Outside Diameter : 40mm (+/- 0.5mm)
Length : 35mm (+/- 0.5mm)
Thread : M10 x 1.5 Thru Hole

Boss Material : Stainless
AISI / ASTM: 316L
UNS Number: S31603
European EN Number: 1.4404 (X2CrNiMo17-12-2)
British Standard (BS): 316S13

Hardware Material : Bronze
PB102 / CuSn5: European standard CW451K and UNS C51000

Hardware Pack Items :
Qty 2 - M10 Nuts
Qty 2 - M10 Washers
Qty 1 - M10 Threaded bar (45mm long)

A Black and white COPY of the 3.1 test certificate will be sent for the BOSS material only.

Certificate of Conformity will be issued for any hardware.
If you require a RED STAMP copy please contact us Via Email for a PDF version.

All Items fall under ISO9001 and are EU/UK material.

Please Note : This is for the a Boss with Bronze hardware, If you require different hardware please see our other listings ( https://earthbosses.com/collections/all )

We also sell hardware kits in standard or custom specification separately

If you require custom Earth Bosses, Please feel free to get in contact, We can supply and size, material and threads, Including UNC, UNF.
